Are you a software developer or an advanced computer user and want to integrate one or more of reaConverter's features inside your own custom solution? Or perhaps you are a professional image handler and would like to automate some of the recurring processes related to image editing? Then you can make full use of the command-line feature!

Command-line tool is an advanced feature meant for professional use, and is available in Pro edition only.

Download reaConverter Pro with CLI



How does it work?

Here is a quick tutorial of how you can find it and how you can start using the command-line feature. reaConverter provides a command-line tool called cons_rcp.exe

Usage:

cons_rcp.exe -s source_file -o output_file [cfg_file.cfg] [act_file.act] [/hide]

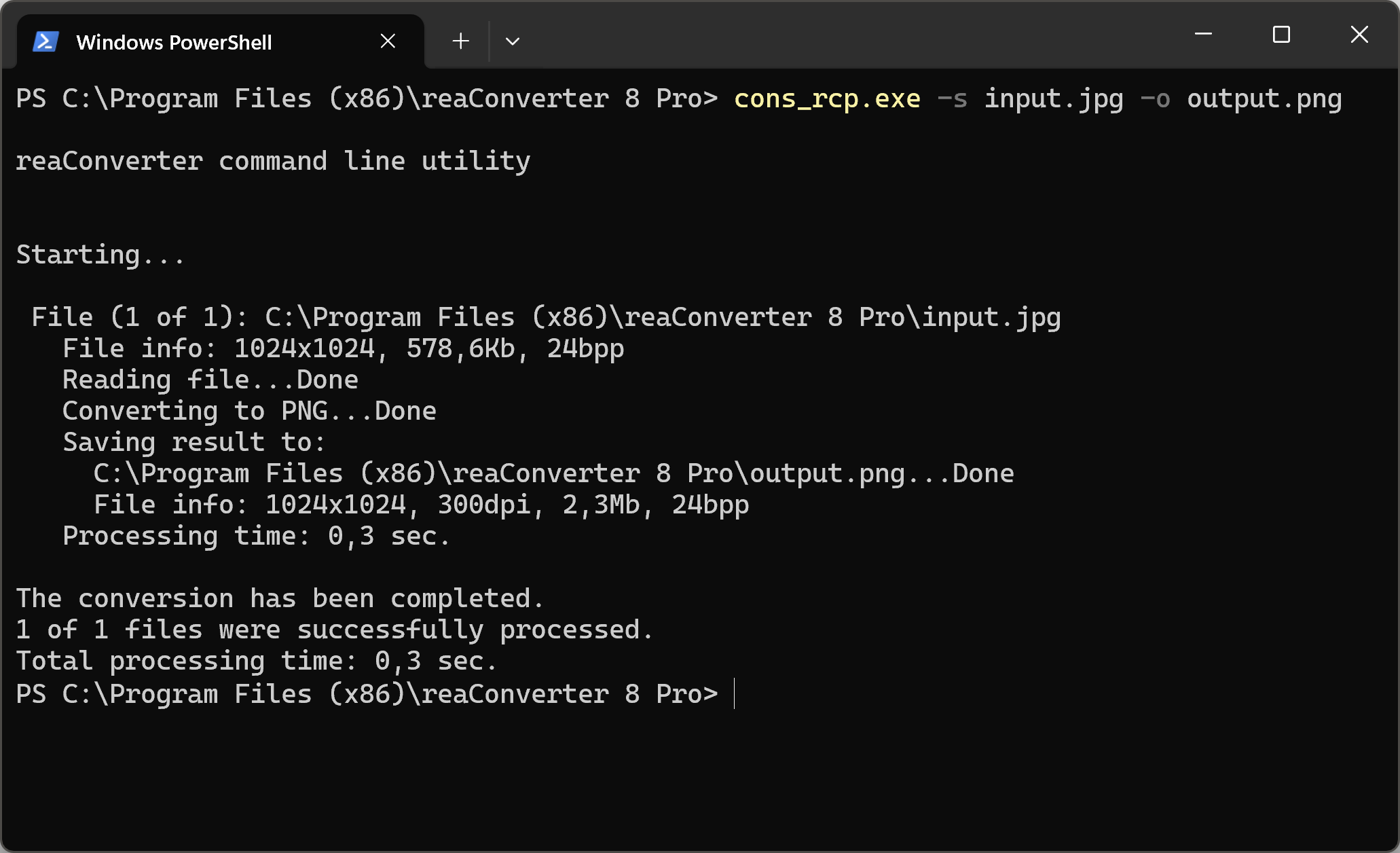

To convert one file from .jpg to .png run from cmd:

cons_rcp.exe -s "C:\Path_to\input_file.jpg" -o "C:\Path_to\output_file.png"

Batch images conversion

cons_rcp.exe deals with configuration .cfg and action .act files. A configuration file contains information on the output format and its settings, destination folder, additional settings, file options, file name modifications, conversion options (transparency color, loading settings, etc.), and, optionally, information on the file list. An action file takes care of the actions you need to apply to your images. Source files can be specified by "-f" parameter.

Both configuration and action files can be saved in reaConverter as well as in any text editor. However, we recommend saving them directly in reaConverter as it minimizes the risk of mistakes.

Batch image conversion and editing:

cons_rcp.exe "C:\Path_to\cfg_file.cfg" "C:\Path_to\act_file.act" -f source_file1 source_file2 source_file3

Any parameter from .cfg file can be specified in a command line:

cons_rcp.exe -s source_file -o output_file [-cfg_param1 value1] [-cfg_param2 value2]

For example:

cons_rcp.exe -s "C:\Path_to\input_file.png" -o "C:\Path_to\output_file.gif" -gif_transparent 1 -create_thumbnails 1

Batch BMP to JPG conversion from one folder to another:

cons_rcp.exe -source_folder "C:\Path_to\input_folder\" -source_ext bmp -dest_path "C:\Path_to\output_folder\" -dest_ext jpg -jpg_quality 100

Merge multiple JPEG images into one multipage PDF file:

cons_rcp.exe -f "JPEG_file_1.jpg" "JPEG_file_2.jpg" "JPEG_file_3.jpg" -o "PDF_multipage_file.pdf" -multipage_option 2

Full list of config parameters:

-source_folder value — string with path to image files you want to be converted (example: -source_folder "d:\source\")
-file_age value — number of days, allows to select files created xx or less days ago (example: -file_age 0 selects files created today)
-source_ext value — string with extension (type) of image files you want to be converted
-file_mask value — string with filename mask of image files you want to be converted (example: -file_mask 1?.*)
-dest_path value — string with path to the destination folder
-dest_subfolder value — string with destination subfolder name
-same_as_source value — 1 if you want to save each converted image file to the its source folder and = 0 if you want to save it to a folder specified in "-dest_path" or "dest_subfolder"
-dest_ext value — string with extension (type) of converted image files
-use_file_list value — string with path to a text file with list of files you want to be converted
-show_transp value — 1 if you want to show/read transparency as a specified color, = 0 otherwise
-transp_red value — red component of specified color (from 0 to 255)
-transp_green value — green component of specified color (from 0 to 255)
-transp_blue value — blue component of specified color (from 0 to 255)
-read_subfolders value —  1 if you want to process files from subfolders of folder defined by "source_folder" parameter and = 0 therwise
-file_size_more value — minimum file size in Kb or Mb to be converted (example: -file_size_more 10Kb or -file_size_more 1Mb)
-file_size_less value — maximum file size in Kb or Mb to be converted (example: -file_size_less 10Kb or -file_size_less 1Mb)
-multipage_loading_option value — 0 if you want to convert every page of multipage files, 1 if you want to convert pages specified in the "Multipage_Loading_pages" option
-multipage_actions_option value — 0 if you want to edit every page of multipage files, 1 if you want to edit pages specified in the "Multipage_Apply_actions_pages" option
-multipage_loading_pages value — list of page numbers you want to convert (example: 1, 3, 5-12)
-multipage_apply_actions_pages value — list of page numbers you want to edit (example: 1, 3, 5-12)
-gif_transparent value — 1 if you want to create transparent GIF files and = 0 otherwise
-gif_auto_transp value — 1 if you want the program to take transparency color in auto mode and = 0 otherwise
-gif_color_red value — red component of transparency color (from 0 to 255)
-gif_color_green value — green component of transparency color (from 0 to 255)
-gif_color_blue value — blue component of transparency color (from 0 to 255)
-gif_interlaced value — 1 if you want to create interlaced GIF files and = 0 otherwise
-gif_delay_time value — animation delay time (1/100s)
-gif_loop value — 1 if you want to loop animated GIF forever and = 0 otherwise
-jxr_quality value — quality for converted JXR files (from 1 to 100%)
-jpg_quality value — quality for converted JPG files (from 1 to 100%)
-jpg_progressive value — 1 if you want to create progressive JPG files and = 0 otherwise
-jpg_color_space value — color model used to create JPG files (0 - YCbCr; 1 - CMYK; 2 - RGB; 3 - YCbCrK; 4 - Gray)
-tif_compression value — compression method used to create TIF files (0 - no compression; 1 - Huffman; 2 - PackBits (RLE); 3 - CCITT Group 3, 1D; 4 - CCITT Group 3, 2D; 5 - CCITT Group 4, 2D; 6 - JPEG; 7 - LZW)
-tif_save_in_cmyk value — 1 if you want to create CMYK TIF files and = 0 otherwise
-tif_jpg_quality value — quality (from 1 to 100%) for JPEG compression
-png_transparent value — 1 if you want to create transparent PNG files and = 0 otherwise
-png_auto_transp value — 1 if you want the program to take transparency color in auto mode and = 0 otherwise
-png_color_red value — red component of transparency color (from 0 to 255)
-png_color_green value — green component of transparency color (from 0 to 255)
-png_color_blue value — blue component of transparency color (from 0 to 255)
-png_interlaced value — 1 if you want to create interlaced PNG files and = 0 otherwise
-png_compression value — level of compression, the value can vary from 0 (no compression) to 9 (best compression)
-png_animated value — 1 if you want to create animated PNG files and = 0 otherwise
-png_delay_time value — animation delay time (1/100s)
-png_optimized value — 1 if you want to create optimized PNG files and = 0 otherwise
-bmp_compression value — 1 if you want to create compressed BMP files and = 0 otherwise
-pcx_compression value — 1 if you want to create compressed PCX files and = 0 otherwise
-tga_compression value — 1 if you want to create compressed TGA files and = 0 otherwise
-jp2_quality value — quality for converted JP2 files (from 1 to 100%)
-file_name_mask value — string with a radical of converted filename, if you set it to then a radical of converted file will be a filename of a source file
-file_name_mask_prefix value — string with a text prefix that will be added to filename of converted files
-file_name_mask_suffix value — string with a text suffix that will be added to filename of converted files
-file_name_start_number value — initial number that will be used to careate a filename of converted files
-file_name_replace value — 1 if you want to replace a substring in filename and = 0 otherwise
-file_name_substring_1 value — string to be replaced in filename
-file_name_substring_2 value — string to be replaced with in filename
-file_name_lower_case_ext value — 1 if you want to get converted files with lower case extension and = 0 otherwise
-file_name_case_option value — 0 for no change of converted filenames and = 1 for changing case according to "Case_option"
-file_name_change_case value — 0 for lower case and = 1 for upper case
-multipage_option value — 1 if you want to convert each multipage file to another, = 2 to save all processed files to one multipage file, = 3 to save every page of converted file as a separate file, and = 4 if you want to save group of files to one file
-multipage_group value — number of files in a group (if Option = 4)
-merge_to_one value — 1 to merge vertically, = 2 to merge horizontally (works with -multipage_option 2 only)
-colors_option value — 1 to use output "Bits per sample" and "Sample per pixel" values from original file, = 2 to use optimum values which will be calculated for each converted file, = 3 to define the output color resolution values yourself
-colors_bits_per_sample value — number of bits used to store information about each color channel (from 1 to 8)
-colors_samples_per_pixel value — number of color channels used to store information about one pixel (can be 1 or 3)
-dpi_option value — 1 if you want to copy information about dpi resolution from original file, = 2 if you want to set your own values for dpi resolution
-dpi_x value — horizontal resolution for converted files (from 1 to 10000 dpi)
-dpi_y value — vertical resolution for converted files (from 1 to 10000 dpi)
-copy_alpha value — 1 if you want to copy information about alpha channel (transparency) from original file and = 0 otherwise
-copy_iptc value — 1 if you want to copy IPTC information from original file and = 0 otherwise
-copy_exif value — 1 if you want to copy EXIF information from original file and = 0 otherwise
-exif_title value — sets a new value of EXIF XPTitle tag
-exif_subject value — sets a new value of EXIF XPSubject tag
-exif_keywords value — sets a new value of EXIF XPKeywords tag
-exif_comment value — sets a new value of EXIF XPComment tag
-exif_author value — sets a new value of EXIF XPAuthor tag
-exif_copyright value — sets a new value of EXIF Copyright tag
-exif_copyright value — sets a new value of Color space (0 = sRGB, 1 = Uncalibrated)
-icc_option value — 1 to apply and remove ICC profile, 2 to copy and retain ICC profile, 3 to assign ICC profile
-icc_file value — path to ICC file for -icc_option 3
-overwrite value — 1 if you want to replace (overwrite) existing file, = 0 if you do not want to overwrite existing file (skip)
-same_date value — 1 if you want to set converted file date same as original file and = 0 otherwise
-save_path value — 0 if you want to save all files into one (destination) folder, 1 if you want to to convert with saving path info according to the "Save_path_option"
-save_path_option value — 1 if you want to to convert with saving path info of an original file starting from a root folder and = 2 if you want to to convert with saving path info starting from a current folder
-delete_files value — 1 if you want to delete successfully processed (source) files and = 0 otherwise. Note, it will not delete a source file if a converted file has the same name and type
-delete_empty_folders value — 1 if you want to delete empty folders (works with -delete_files option) and = 0 otherwise
-move_files value — 1 if you want to move successfully processed (source) files to a "Move_files_folder" and = 0 otherwise
-move_files_folder value — path to image files you want to be moved
-move_unprocessed_files value — 1 if you want to move unprocessed (source) files to a "Move_unprocessed_files_folder" and = 0 otherwise
-move_unprocessed_files_folder value — path to unprocessed image files you want to be moved
-copy_if_same value — 1 if you want to copy original file instead of converting if image and format remain the same and = 0 otherwise
-create_thumbnails value — 1 if you want to create thumbnails and = 0 otherwise
-thumbnails_folder value — path to thumbnail image files you want to be saved
-thumbnails_width value — thumbnail width
-thumbnails_height value — thumbnail height
-thumbnails_resize_type value — 1 - both Height and Width (without keepping aspect), 2 - Height (keepping aspect), 3 - Width (keepping aspect), 4 - both Height and Width will be used (with keepping aspect)
-thumbnails_do_not_resize_if_less value — 1 do not resize images if they are less than thumbnail width/height and = 0 otherwise
-thumbnails_mask value — thumbnail filename mask
-thumbnails_counter value — counter used in the "Thumbnails_Mask" option
-thumbnails_ext value — Thumbnail file type can be jpg, gif or png
-thumbnails_jpg_quality value — Quality for JPG thumbnails (from 1 to 100%)
-thumbnails_first_page_only value — 1 to create thumbnails for first page only and = 0 otherwise
-create_thumbnails_2 value — 1 if you want to create thumbnails and = 0 otherwise
-thumbnails_folder_2 value — path to thumbnail image files you want to be saved
-thumbnails_width_2 value — thumbnail width
-thumbnails_height_2 value — thumbnail height
-thumbnails_resize_type_2 value — 1 - both Height and Width (without keepping aspect), 2 - Height (keepping aspect), 3 - Width (keepping aspect), 4 - both Height and Width will be used (with keepping aspect)
-thumbnails_do_not_resize_if_less_2 value — 1 do not resize images if they are less than thumbnail width/height and = 0 otherwise
-thumbnails_mask value — _2 = thumbnail filename mask
-thumbnails_counter_2 value — counter used in the "Thumbnails_Mask" option
-thumbnails_ext_2 value — Thumbnail file type can be jpg, gif or png
-thumbnails_jpg_quality_2 value — Quality for JPG thumbnails (from 1 to 100%)
-thumbnails_first_page_only_2 value — 1 to create thumbnails for first page only and = 0 otherwise
-create_thumbnails_3 value — 1 if you want to create thumbnails and = 0 otherwise
-thumbnails_folder_3 value — path to thumbnail image files you want to be saved
-thumbnails_width_3 value — thumbnail width
-thumbnails_height_3 value — thumbnail height
-thumbnails_resize_type_3 value — 1 - both Height and Width (without keepping aspect), 2 - Height (keepping aspect), 3 - Width (keepping aspect), 4 - both Height and Width will be used (with keepping aspect)
-thumbnails_do_not_resize_if_less_3 value — 1 do not resize images if they are less than thumbnail width/height and = 0 otherwise
-thumbnails_mask value — _3 = thumbnail filename mask
-thumbnails_counter_3 value — counter used in the "Thumbnails_Mask" option
-thumbnails_ext_3 value — Thumbnail file type can be jpg, gif or png
-thumbnails_jpg_quality_3 value — Quality for JPG thumbnails (from 1 to 100%)
-thumbnails_first_page_only_3 value — 1 to create thumbnails for first page only and = 0 otherwise
-create_thumbnails_4 value — 1 if you want to create thumbnails and = 0 otherwise
-thumbnails_folder_4 value — path to thumbnail image files you want to be saved
-thumbnails_width_4 value — thumbnail width
-thumbnails_height_4 value — thumbnail height
-thumbnails_resize_type_4 value — 1 - both Height and Width (without keepping aspect), 2 - Height (keepping aspect), 3 - Width (keepping aspect), 4 - both Height and Width will be used (with keepping aspect)
-thumbnails_do_not_resize_if_less_4 value — 1 do not resize images if they are less than thumbnail width/height and = 0 otherwise
-thumbnails_mask value — _4 = thumbnail filename mask
-thumbnails_counter_4 value — counter used in the "Thumbnails_Mask" option
-thumbnails_ext_4 value — Thumbnail file type can be jpg, gif or png
-thumbnails_jpg_quality_4 value — Quality for JPG thumbnails (from 1 to 100%)
-thumbnails_first_page_only_4 value — 1 to create thumbnails for first page only and = 0 otherwise
-create_thumbnails_5 value — 1 if you want to create thumbnails and = 0 otherwise
-thumbnails_folder_5 value — path to thumbnail image files you want to be saved
-thumbnails_width_5 value — thumbnail width
-thumbnails_height_5 value — thumbnail height
-thumbnails_resize_type_5 value — 1 - both Height and Width (without keepping aspect), 2 - Height (keepping aspect), 3 - Width (keepping aspect), 4 - both Height and Width will be used (with keepping aspect)
-thumbnails_do_not_resize_if_less_5 value — 1 do not resize images if they are less than thumbnail width/height and = 0 otherwise
-thumbnails_mask value — _5 = thumbnail filename mask
-thumbnails_counter_5 value — counter used in the "Thumbnails_Mask" option
-thumbnails_ext_5 value — Thumbnail file type can be jpg, gif or png
-thumbnails_jpg_quality_5 value — Quality for JPG thumbnails (from 1 to 100%)
-thumbnails_first_page_only_5 value — 1 to create thumbnails for first page only and = 0 otherwise
-webp_quality value — quality for converted WEBP files (from 1 to 100%, 100% means lossless compression)
-bpg_quality value — quality for converted BPG files (from 1 to 100%, 100% means lossless compression)
-adobe_res value — PDF/AI/PS/EPS/EPI loading resolution (from 1 to 1000dpi)
-adobe_color_res value — color resolution used to read PDF/AI/PS/EPS/EPI files (0 - auto (first page); 2 - auto (every page); 1 - black and white; 8 - Grayscale; 24 - RGB; 32 - CMYK)
-adobe_aa value — 1 if you want to apply anti-aliasing while reading PDF/AI/PS/EPS/EPI files and = 0 otherwise
-adobe_extract_images value — 1 if you want to extract images from PDF files and = 0 otherwise
-adobe_alpha value — 1 if you want to make background transparent and = 0 otherwise
-adobe_font_path value — path to font files to read PDF/AI/PS/EPS/EPI
-pdf_compression value — compression method used to create PDF files (0 - no compression; 1 - RLE compression; 2 - CCITT Group 4, 1D; 3 - CCITT Group 3; 4 - JPEG; 5 - LZW; 6 - optimum compression)
-pdf_paper value — PDF paper size (0 - A0; 1 - A1; 2 - A2; 3 - A3; 4 - A4; 5 - A5; 6 - A6; 7 - B5; 8 - Letter; 9 - Legal; 10 - Ledger; 11 - 11"x17"; 12 - size of original image; 13 - 17"x22"; 14 - 22"x34"; 15 - 34"x44")
-pdf_orientation value — PDF paper orientation (0 - Portrait; 1 - Landscape)
-pdf_jpg_quality value — quality (from 1 to 100%) for JPEG compression
-pdf_save_in_cmyk value — 1 if you want to create CMYK PDF files with deflate compression and = 0 otherwise
-ai_compression value — compression method used to create AI files (0 - no compression; 1 - RLE compression; 2 - CCITT Group 4, 1D; 3 - CCITT Group 3; 4 - JPEG; 5 - LZW; 6 - optimum compression)
-ai_paper value — AI paper size (0 - A0; 1 - A1; 2 - A2; 3 - A3; 4 - A4; 5 - A5; 6 - A6; 7 - B5; 8 - Letter; 9 - Legal; 10 - Ledger; 11 - 11"x17"; 12 - size of original image; 13 - 17"x22"; 14 - 22"x34"; 15 - 34"x44")
-ai_jpg_quality value — quality (from 1 to 100%) for JPEG compression
-ai_save_in_cmyk value — 1 if you want to create CMYK AI files with deflate compression and = 0 otherwise
-ai_create_preview value — 1 if you want to create AI file with preview and = 0 otherwise
-ai_ver value — AI PDF compatible version (0 - 1.2; 1 - 1.3; 2 - 1.4; 3 - 1.5)
-eps_save_in_cmyk value — 1 if you want to create CMYK uncompressed EPS or PS files and = 0 otherwise
-eps_create_preview value — 1 if you want to create EPS file with preview and = 0 otherwise
-pdf_open_password value — string with Open Document password
-pdf_permissions_password value — string with Permissions password
-pdf_allow_printing value — 1 if you want to allow PDF printing and = 0 otherwise
-pdf_allow_editing value — 1 if you want to allow PDF editing and = 0 otherwise
-pdf_allow_copying value — 1 if you want to allow copying from PDF and = 0 otherwise
-create_pdf_a value — 1 if you want to create PDF/A document and = 0 otherwise
-create_searchable_pdf value — 1 if you want to create searchable PDF and = 0 otherwise
-searchable_pdf_lang value — Searchable PDF language (eng - English; deu - Deutsch; fra - French; nld - Nederlands; por - Portuguese; spa - Spanish; rus - Russian)
-create_linearized_pdf value — 1 if you want to create linearized PDF and = 0 otherwise
-rotate_pdf value — rotates PDF (1 - rotate 90 degrees; 2 - rotate -90 degrees; 3 - rotate 180 degrees; 4 - rotate to portrait; 5 - rotate to landscape)
-pdf_text_to_curves value — 1 if you want to convert text to curves in PDF and = 0 otherwise
-pdf_change_res value — changes raster image resolution in PDF (1 - 72 dpi; 2 - 150 dpi; 3 - 300 dpi)
-pcl_paper value — PCL paper size (0 - A0; 1 - A1; 2 - A2; 3 - A3; 4 - A4; 5 - A5; 6 - A6; 7 - B5; 8 - Letter; 9 - Legal; 10 - Ledger; 11 - 11"x17")
-pcl_position value — Image position on the page (1 - left-top; 2 - right-top; 3 - center; 4 - left-bottom; 5 - right-bottom)
-pcl_option value — 0 - creates PCL file for color printers; 1 - for monochrome printers (PCL 5/6); 2 - for monochrome printers (PCL 4); 3 - for monochrome printers (PCL 3)
-pcl3_x value — PCL3 left offset 1/720"
-pcl3_y value — PCL3 top offset 1/720"
-pcl4_x value — PCL4 left offset 1/720"
-pcl4_y value — PCL4 top offset 1/720"
-raw_white_balance value — 1 none, 2 automatic, 3 from camera
-raw_brightness value — from 0 to 500
-raw_interpolation value — interpolation = 0 - Adaptive Homogeneity-Directed, = 1 - Variable Number of Gradients, = 2 - High speed low quality bilinear
-raw_half_size value — 1 if you want to get fast preview (half-size image) and = 0 otherwise
-raw_auto_color value — 1 if you want to apply automatic color correction and = 0 otherwise
-raw_denoise value — 1 if you want to apply denoise filter and = 0 otherwise
-raw_16bit value — 1 if you want to get 16-bit per channel and = 0 otherwise
-raw_jpeg value — 1 if you want to load embedded jpeg and = 0 otherwise
-vector_zoom value — zoom (from 1 to 1000%) to convert vector to raster images
-swf_extract_images value — 1 if you want to extract images from SWF files and = 0 otherwise
-dxf_dwg_gray value — 1 if you want to convert DXF/DWG/DGN to grayscale and = 0 otherwise
-dxf_dwg_layout value — Output layout (0 - All layouts, 1 - Model space, 2 - All paper spaces)
-dxf_dwg_loading_units value — DXF/DWG units (1 - mm, 2 - inches, 3 - feet, 4 - meters, 5 -cm)
-dxf_dwg_extract_layers value — 1 if you want to extract layers from DXF/DWG files and = 0 otherwise
-ras2vec_option value — Raster to vector algorithm (1 - Centerline, 2 - Outline, 3 - Outline with fill)
-ras2vec_precision value — Raster to vector algorithm precision (from 1 to 100%)
-dxf_dwg_units value — DXF/DWG units when converted from raster formats (1 - mm, 2 - inches, 3 - pixels (scale = 1))
-3d_x value — angle (from 1 to 360 degrees) to rotate 3D image about x-axis
-3d_y value — angle (from 1 to 360 degrees) to rotate 3D image about y-axis
-3d_z value — angle (from 1 to 360 degrees) to rotate 3D image about z-axis
-3d_multi_frames value — 1 if you want create multiple frames from 3D image and = 0 otherwise
-3d_frames value — number of frames for 3D image rotation
-3d_x_from value — initial value for x-axis rotation
-3d_x_to value — final value for x-axis rotation
-3d_y_from value — initial value for y-axis rotation
-3d_y_to value — final value for y-axis rotation
-3d_z_from value — initial value for z-axis rotation
-3d_z_to value — final value for z-axis rotation
-skip_blank value — 1 if you want skip blank files/pages and = 0 otherwise
-skip_blank_accuracy value — accuracy of blank files/pages detection (from 1 to 100%)
-temp_folder value — string with path to temp folder (example: -temp_folder "d:\temp\")
-dxf_version value — output DXF version (1 - Autocad 12; 2 - Autocad 13; 3 - Autocad 14; 4 - Autocad 2000; 5 - Autocad 2004; 6 - Autocad 2007; 7 - Autocad 2010; 8 - Autocad 2013)
-dwg_version value — output DWG version (1 - Autocad 12; 2 - Autocad 13; 3 - Autocad 14; 4 - Autocad 2000; 5 - Autocad 2004; 6 - Autocad 2007; 7 - Autocad 2010; 8 - Autocad 2013)
-dxf_text value — 0 to convert text to polygons and = 1 to save text as text in DXF
-dwg_text value — 0 to convert text to polygons and = 1 to save text as text in DWG
-dxf_spline value — 1 to create DXF with splines and = 0 otherwise
-dwg_spline value — 1 to create DWG with splines and = 0 otherwise
-svg_size value — 1 to use page size and = 2 to use objects size when load SVG file
-svg_remove_bg value — 1 if you want to remove background when load SVG file and = 0 otherwise
-svg_raster value — 1 if you want to create raster SVG files and = 0 otherwise
-svg_quality value — quality for raster SVG files (from 1 to 100%)
-svg_raster-lossless value — 1 if you want to create lossless raster SVG files and = 0 otherwise
-svg_compressed value — 1 if you want to create compressed SVG files and = 0 otherwise
-svg_linked_images value — 1 if you want to create SVG with linked image files and = 0 otherwise
-svg_set_sw value — 1 if you want to set stroke width and = 0 otherwise
-svg_sw value — stroke width
-svg_set_color value — 1 if you want to set background color and = 0 otherwise
-svg_color_red value — red component of background color (from 0 to 255)
-svg_color_green value — green component of background color (from 0 to 255)
-svg_color_blue value — blue component of background color (from 0 to 255)
-svg_units value — output SVG units (0 - pt; 1 - mm)
-plt_hpgl2 value — 1 if you want to create HPGL/2 PLT files and = 0 to create HPGL PLT
-plt_optimized value — 1 if you want to create optimized PLT files and = 0 otherwise
-plt_rotate value — 0 - Do not rotate, 1 - Rotate 90 degrees right, 2 - Rotate 90 degrees left
-plt_pw value — pen width in plotter units (1 mm = 40 plotter units)
-plt_remove_dup value — 1 if you want to remove duplicated lines and = 0 otherwise
-plt_save_size value — 1 if you want to save size of PLT image and = 0 otherwise
-gbr_raster value — 1 if you want to create GBR using raster to vector conversion and = 0 otherwise
-gbr_type value — GBR type (0 - Gerber; 1 - Gimp brush)
-swf_animated value — 1 if you want to create animated SWF files and = 0 otherwise
-swf_frame_rate value — animation frame rate (frames/sec)
-swf_quality value — quality of embedded images (from 1 to 100%)
-exr_hdr_24bit value — 1 if you want to convert EXR/HDR to 24 bit color image and = 0 to convert to 96 bit color image
-cpu_usage value — CPU usage level (1 - Low; 2 - Normal; 3 - High)
-check_files value — 1 if you want to check input files before conversion and = 0 otherwise
-rasterize_vector value — 1 if you want to rasterize vector graphics and = 0 otherwise
-ico_create_multi_size value — 1 if you want to create multiple size icon and = 0 otherwise
-ico_256 value — 1 if you want to create 256 x 256 pixels icon and = 0 otherwise (works with -ico_create_multi_size)
-ico_128 value — 1 if you want to create 128 x 128 pixels icon and = 0 otherwise (works with -ico_create_multi_size)
-ico_64 value — 1 if you want to create 64 x 64 pixels icon and = 0 otherwise (works with -ico_create_multi_size)
-ico_48 value — 1 if you want to create 48 x 48 pixels icon and = 0 otherwise (works with -ico_create_multi_size)
-ico_32 value — 1 if you want to create 32 x 32 pixels icon and = 0 otherwise (works with -ico_create_multi_size)
-ico_24 value — 1 if you want to create 24 x 24 pixels icon and = 0 otherwise (works with -ico_create_multi_size)
-ico_16 value — 1 if you want to create 16 x 16 pixels icon and = 0 otherwise (works with -ico_create_multi_size)
-scn_level value — resolution level of a Leica SCN file (from 0 (hight) to 4 (low))
-svs_level value — resolution level of SVS file (from 0 (high) to 3 (low))
-sid_level value — resolution level of a SID file (from 0 (hight) to 5 (low))
-fit_option value — option for loading FIT/FITS/FTS files (1 or 2)
-x3d_html value — 1 if you want to save X3D as HTML and = 0 otherwise

Image Editing

To convert file and apply editing actions:

cons_rcp.exe -s "C:\Path_to\input_file.jpg" -o "C:\Path_to\output_file.png" "C:\Path_to\act_file.act"

Any action from .act can be specified in a command line:

cons_rcp.exe -s source_file -o output_file [-action1 param1 param2] [-action2]

To convert and resize:

cons_rcp.exe -s "C:\Path_to\input_file.jpg" -o "C:\Path_to\output_file.png" -resize 200x100px qh

To add image watermark:

cons_rcp.exe -s "C:\Path_to\input_file.jpg" -o "C:\Path_to\output_file.jpg" -image_watermark p"C:\Path_to\watermark.jpg" pos30x30% rot90 mt rgb(66,137,212) t10

Full list of image editing actions:

-canvas_size (changes canvas size of an image)
  Optional parameters:
  1. New image width and height (Syntax: 200x300px, 2x3in, 10x15cm)
  2. Resolution (Syntax: 300dpi, 450dpc)
     where dpc means dots per cm
  3. Image alignment (Syntax: lt, ct, rt, cl, c, cr, lb, cb, rb)
     where "lt", "ct", "rt", "cl", "c", "cr", "lb", "cb", "rb"
     mean left-top, center-top, right-top, center-left, center,
     center-right, left-bottom, center-bottom, right-bottom.
  4. Canvas color (Syntax: rgb(66,137,212), hex(4289d4))
Example: -canvas_size 200x300 ct

-auto_square (makes square image)
  Optional parameters:
  1. Square size (Syntax: ss, ls)
     where "ss" means smaller image side,
     "ls" means larger image side
  2. Image alignment (Syntax: t, l, c, r, b)
     where "t", "l", "c", "r", "b"
     mean top, left, center, right, bottom.
  3. Background color (Syntax: rgb(66,137,212), hex(4289d4))
Example: -auto_square ss c

-rotate (rotates an image)
  Optional parameters:
  1. Angle (Syntax: a45, integer from -360 to 360)
  2. Background color (Syntax: rgb(66,137,212), hex(4289d4))
Example: -rotate a45 rgb(255,255,255)

-mirror (mirrors an image)
  Optional parameter:
  1. Direction (Syntax: v, h)
     where "v" means verticall, "h" means horizontall direction
Example: -mirror v

-crop (crops an image from adges)
  Optional parameters:
  1. Pixels from an image Top (Syntax: t10, integer)
  2. Pixels from an image Bottom (Syntax: b10, integer)
  3. Pixels from an image Left (Syntax: l10, integer)
  4. Pixels from an image Right (Syntax: r10, integer)
Example: -crop t10

-crop (crops an image from center)
  Optional parameter:
  1. Width and Height in pixels (Syntax: 100x200)
Example: -crop 100x200

-resize (resizes an image)
  Optional parameters:
  1. New image size (Syntax: 30x0%, 30x30%, 0x100px, 100x200px,
     3x5in, 3x0in, 10x15cm, 10x0cm)
     where 0 means that the value will be calculated with preserved proportions
  2. Resolution (Syntax: 300dpi, 450dpc)
     where dpc means dots per cm
  3. Resampling quality (Syntax: ql, qn, qh)
     where "ql", "qn", "qh" mean low, normal, high.
  4. Do not resize if new size is less than original (Syntax: notless)
  5. Maintain proportions (Syntax: m)
Example: -resize 0x100px qh

-rgb (changes Red, Green and Blue balance)
  Optional parameters:
  1. Red change (Syntax: r50, integer from -100 to 100)
  2. Green change (Syntax: g50, integer from -100 to 100)
  3. Blue change (Syntax: b50, integer from -100 to 100)
Example: -rgb r-50

-add_border (adds color border to an image)
  Optional parameters:
  1. Border width in pixels (Syntax: w20, integer from 1)
  2. Border color (Syntax: rgb(66,137,212), hex(4289d4))
  3. Border position (Syntax: in, out)
     where "in" and "out" mean inside and outside image.
Example: -add_border w10 rgb(255,0,0) in

-add_shadow (adds color shadow to an image)
  Optional parameters:
  1. Blur width in pixels (Syntax: b10, integer)
  2. Distance to the shadow in pixels (Syntax: d20, integer)
  3. Shadow color (Syntax: s_rgb(66,137,212), s_hex(4289d4))
  4. Background color (Syntax: b_rgb(66,137,212), b_hex(4289d4))
  5. Make background transparent (Syntax: tr)
  6. Place shadow around image (Syntax: around
Example: -add_shadow b10 d20 s_rgb(128,128,128) b_rgb(255,255,255)

-color_replace (replaces colors of pixels)
  Optional parameters:
  1. Original color (Syntax: o_rgb(66,137,212), o_hex(4289d4))
  2. Replacement color (Syntax: r_rgb(66,137,212), r_hex(4289d4))
  3. Tolerance for the colors coincidence (Syntax: t10, integer from 0 to 100)
Example: -color_replace o_rgb(255,0,0) r_rgb(0,255,0) t20

-change_to (changes color resolution)
  Optional parameter:
  1. Number of colors (Syntax: 16, integer from 2 to 256)
Example: -change_to 128

-change_to_true (changes color resolution to True colors (24 bit))

-change_to_gray (changes color resolution to Gray (8 bit))

-change_to_high (changes color resolution to High colors (16 bit))

-change_to_gray24 (changes color resolution to Gray (24 bit))

-change_to_negative (makes negative color transformation)

-hue_sat (changes hue and saturation balance)
  Optional parameters:
  1. Hue change (Syntax: h25, integer from -100 to 100)
  2. Saturation change (Syntax: s25, integer from -100 to 100)
Example: -hue_sat h25 s-25

-bc (changes brightness and contrast balance)
  Optional parameters:
  1. Brightness change (Syntax: b25, integer from -100 to 100)
  2. Contrast change (Syntax: c25, integer from -100 to 100)
Example: -bc b-10 c10

-blur (applies blur filter)
  Optional parameter:
  1. Intensity (Syntax: 20, integer from 0 to 100)
Example: -blur 20

-split_blur (applies split blur filter)
  Optional parameter:
  1. Intensity (Syntax: 20, integer from 0 to 100)
Example: -split_blur 30

-gaussian_blur (applies gaussian blur filter)
  Optional parameter:
  1. Intensity (Syntax: 20, integer from 0 to 100)

-auto_sharp (applies auto sharp filter)

-auto_contrast (applies auto contrast filter)

-sharpen (applies sharpen filter)
  Optional parameter:
  1. Intensity (Syntax: 20, integer from 0 to 100)

-unsharp_mask (applies unsharp mask filter)
  Optional parameter:
  1. Intensity (Syntax: 20, integer from 0 to 100)

-antialias (applies antialias filter)
  Optional parameter:
  1. Intensity (Syntax: 20, integer from 0 to 100)

-gamma (performs gamma correction)
  Optional parameter:
  1. Gamma (Syntax: 0.8, float from 0.2 to 5.0)
Example: -gamma 1.2

-invert (inverts colors)

-replace_background (replaces background)
  Optional parameters:
  1. Full path to background image file (Syntax: p"c:\image.jpg", string with quotation marks)
  2. Do not stretch image (Syntax: ns)
  3. Background color (Syntax: rgb(66,137,212), hex(4289d4))
  4. Tolerance for colors coincidence (Syntax: t25, integer from 0 to 100)
Example: -replace_background p"c:\background.bmp" rgb(255,255,255) t20

-color_noise (applies color noise filter)
  Optional parameter:
  1. Intensity (Syntax: 20, integer from 0 to 100)
Example: -color_noise 25

-mono_noise (applies mono noise filter)
  Optional parameter:
  1. Intensity (Syntax: 20, integer from 0 to 100)

-auto_rotate (applies auto rotate)
  Optional parameters:
  1. Background color (Syntax: rgb(66,137,212), hex(4289d4))
  2. Apply antialiasing (Syntax: al, ah, am)
     where "al", "ah", "am" mean antialiasing low quality,
     high quality, maximum quality.
  3. Deskew (Syntax: d)
  4. Rotate landscape to portrait (Syntax: lp)
  5. Rotate portrait to landscape (Syntax: pl)
  6. Rotate using EXIF orientation information (Syntax: exif)
  7. Rotate Clockwise (Syntax: cw)
  8. Rotate Counter Clockwise (Syntax: ccw)
Example: -auto_rotate rgb(255,255,255) ah d

-auto_crop (applies auto crop)
  Optional parameters:
  1. Use color at corner (Syntax: tl, tr, bl, br)
     where "tl", "tr", "bl", "br" mean Top-Left, Top-Right,
     Bottom-Left, Bottom-Right.
  2. Use specified color (Syntax: rgb(66,137,212), hex(4289d4))
  4. Tolerance for colors coincidence (Syntax: t25, integer from 0 to 100)
Example: -auto_crop tl t25

-photo_filter (applies photo filter)
  Optional parameters:
  1. Use specified color (Syntax: rgb(66,137,212), hex(4289d4))
  2. Intensity (Syntax: i20, integer from 0 to 100)
  3. Preserve luminosity (Syntax: pl)
Example: -photo_filter rgb(255,0,0) i25 pl

-stylize (applies stylize filter)
  Optional parameter:
  1. Filter name (Syntax: vintage, lomo, clarity, sincity, sunrise,
     crossprocess, orangepeel, love, grungy,  jarques, pinhole, oldboot, xpro2)
Example: -stylize lomo

-spray (applies spray filter)
  Optional parameter:
  1. Intensity (Syntax: 20, integer from 0 to 100)
Example: -spray 25

-fisheye (applies fisheye filter)
  Optional parameter:
  1. Intensity (Syntax: 20, integer from 0 to 100)

-mosaic (applies mosaic filter)
  Optional parameter:
  1. Intensity (Syntax: 20, integer from 0 to 100)

-twist (applies twist filter)
  Optional parameter:
  1. Intensity (Syntax: 20, integer from 0 to 100)

-tile (applies tile filter)
  Optional parameter:
  1. Intensity (Syntax: 20, integer from 0 to 100)

-trace (applies trace filter)
  Optional parameter:
  1. Intensity (Syntax: 20, integer from 0 to 100)

-solorize (applies solorize filter)
  Optional parameter:
  1. Intensity (Syntax: 20, integer from 0 to 100)

-posterize (applies posterize filter)
  Optional parameter:
  1. Intensity (Syntax: 20, integer from 0 to 100)

-ripple_random (applies ripple random filter)
  Optional parameter:
  1. Intensity (Syntax: 20, integer from 0 to 100)

-ripple_tooth (applies ripple tooth filter)
  Optional parameter:
  1. Intensity (Syntax: 20, integer from 0 to 100)

-ripple_triangle (applies ripple triangle filter)
  Optional parameter:
  1. Intensity (Syntax: 20, integer from 0 to 100)

-image_watermark (adds image watermark)
  Optional parameters:
  1. Full path to watermark image file (Syntax: p"c:\image.jpg", string with quotation marks)
  2. Watermark position (Syntax: pos30x30%, pos100x200px)
  3. Watermark opacity (Syntax: op100, integer from 1 to 100)
  4. Resize watermark (Syntax: r30, integer from 1)
  5. Rotate watermark (Syntax: rot90, integer from -360 to 360)
  6  Make transparent (Syntax: mt)
  7. Watermark transparency color (Syntax: rgb(66,137,212), hex(4289d4))
  8. Watermark transparency color tolerance (Syntax: t20, integer from 0 to 100)
Example: -image_watermark p"c:\watermark.png" pos10x10% op50 rot90 mt

-text_watermark (adds text watermark)
  Optional parameters:
  1. Text string (Syntax: t"copyright", string with quotation marks)
  2. Watermark position (Syntax: pos30x30%, pos100x200px)
  3. Watermark opacity (Syntax: op100, integer from 1 to 100)
  4. Rotate watermark (Syntax: rot90, integer from -360 to 360)
  5. Font name (Syntax: fn"Arial", string with quotation marks)
  6. Font size (Syntax: fs18, integer from 8)
  6.1. Font size relative to image size (Syntax: fsSmall, fsMedium, fsLarge)
  7. Font color (Syntax: rgb(66,137,212), hex(4289d4))
  8. Font style (Syntax: b, i, u, s)
     where "b", "i", "u", "s" mean bold, italic, underline, strike.
  9. Place image info (Syntax: filename, copyright, description, datetime, monthday,
     daymonthyear, time, comment, page, filename_wo_ext)
  10. Apply to the page number (Syntax: p1, integer from 1)
Example: -text_watermark t"copyright" pos50x50% op100 fn"Arial" fs24 b

-lens_correction (perform lens correction)
  Optional parameter:
  1. Intensity (Syntax: i20, integer from -100 to 100)
Example: -lens_correction i-30

-black_white (converts to black & white)
  Optional parameters:
  1. Conversion type (Syntax: g, d, f, a, m, t)
     where "g", "d", "f", "a", "m", "t" mean grayscale, dithering, Floyd-Steinberg,
     auto, maximum-entropy, thresholding algorithms.
  2. Threshold level (Syntax: 127, integer from 1 to 255)
Example: -black_white t 200

-jpeg_repair (removes jpeg artifacts)
  Optional parameters:
  1. Intensity (Syntax: i15, integer from 1 to 100)
  2. Sharpen level (Syntax: s10, integer from 1 to 100)
Example: -jpeg_repair i25 s10

-auto_white (performs auto white balance)

-white_balance (performs white balance)
  Optional parameter:
  1. Color to be white (Syntax: rgb(66,137,212), hex(4289d4))
Example: -white_balance rgb(240,240,240)

-point (draws point)
  Optional parameters:
  1. Point position in pixels (Syntax: pos50x50)
  2. Point shape (Syntax: s, c)
     where "s", "c" mean square (default), circle.
  3. Pen color (Syntax: rgb(66,137,212), hex(4289d4))
  4. Pen width (Syntax: p3, integer from 1)
  5. Apply anti-aliasing (Syntax: aa, by default anti-aliasing is off)
Example: -point pos50x50 rgb(66,137,212) p2 aa

-line (draws line)
  Optional parameters:
  1. Starting point in pixels (Syntax: pos50x50)
  2. Size in pixels (Syntax: size100x100)
  3. Pen color (Syntax: rgb(66,137,212), hex(4289d4))
  4. Pen width (Syntax: p3, integer from 1)
  5. Apply anti-aliasing (Syntax: aa, by default anti-aliasing is off)
Example: -line pos50x50 size100x100 rgb(66,137,212) p2 aa

-rectangle (draws rectangle)
  Optional parameters:
  1. Position in pixels (Syntax: pos50x50)
  2. Size in pixels (Syntax: size100x100)
  3. Pen color (Syntax: rgb(66,137,212), hex(4289d4))
  4. Pen width (Syntax: p3, integer from 1)
  5. Apply anti-aliasing (Syntax: aa, by default anti-aliasing is off)
  6. Fill inside area with color (Syntax: fill_rgb(66,137,212), fill_hex(4289d4))
Example: -rectangle pos50x50 size100x100 rgb(66,137,212) p2 aa

-ellipse (draws ellipse)
  Optional parameters:
  1. Position in pixels (Syntax: pos50x50)
  2. Size in pixels (Syntax: size100x100)
  3. Pen color (Syntax: rgb(66,137,212), hex(4289d4))
  4. Pen width (Syntax: p3, integer from 1)
  5. Apply anti-aliasing (Syntax: aa, by default anti-aliasing is off)
  6. Fill inside area with color (Syntax: fill_rgb(66,137,212), fill_hex(4289d4))
Example: -ellipse pos50x50 size100x100 rgb(66,137,212) p2 aa

-remove_bw_noise (removes black & white noise)
  Optional parameters:
  1. Number of pixels in a group (Syntax: 2, integer from 1)
  2. Color of noise pixels (Syntax: b, w)
     where "b", "w" mean black, white.
Example: -remove_bw_noise 2 b

-static_background (places image on static background)
  Optional parameters:
  1. Full path to static background file (Syntax: p"c:\image.jpg", string with quotation marks)
  2. Image position (Syntax: pos30x30%, pos100x200px)
  3. Image opacity (Syntax: op100, integer from 1 to 100)
  4  Make transparent (Syntax: mt)
  5. Image transparency color (Syntax: rgb(66,137,212), hex(4289d4))
  6. Image transparency color tolerance (Syntax: t20, integer from 0 to 100)
Example: -static_background p"c:\background.png" pos10x10% op50

-split (splits an image into pieces)
  Optional parameter:
  1. Number of rows and columns (Syntax: 2x2)
Example: -split 2x2

-exposure (changes exposure)
  Optional parameter:
  1. Intensity (Syntax: i20, integer from -100 to 100)
Example: -exposure i20

-upscale (upscales an image 2x or 4x)
  Optional parameters:
  1. Upscale value (Syntax: 2, 4)
  2. Image type (Syntax: a, c, p)
     where "a", "c", "p" mean auto detection (default), clipart, photo
Example: -upscale 4 c

-jpeg_resize (resizes image to make JPG file size smaller than xxx Kb)
  Optional parameters:
  1. File size in Kb (Syntax: s500, integer)
  2. Jpeg quality (Syntax: q80, integer from 1 to 100)
Example: -jpeg_resize s500 q80

-clone (creates multiple copies of image)
  Optional parameters:
  1. Paper width and height (Syntax: 200x300px, 2x3in, 10x15cm)
  2. Resolution (Syntax: 300dpi, 450dpc)
     where dpc means dots per cm
  3. Numbers of rows (Syntax: r2, integer)
  4. Numbers of columns (Syntax: c2, integer)
  5. Canvas color (Syntax: rgb(66,137,212), hex(4289d4))
  6. Scale image to fit (Syntax: scale, by default scale is off)
Example: -clone 21x29.7cm r5 c3 scale

Log file

Coversion log can be saved to a text file:

cons_rcp.exe "C:\Path_to\cfg_file.cfg" "C:\Path_to\act_file.act" > "C:\Path_to\log_file.txt"

Optional parameters:

  • [/hide] is a parameter for running con_rcp.exe silently

File info

reaConverter can show file information:

cons_rcp.exe -i source_file

Return codes

reaConverter return code values:

0 - No errors
1 - Configuration file (cfg) is not found
2 - Actions file (act) is not found
3 - Not enough parameters
4 - Corresponds to the error message: cons_rcp.exe Internal error (1)
5 - Corresponds to the error message: cons_rcp.exe Internal error (2)
6 - Corresponds to the error message: cons_rcp.exe Internal error (3)
7 - There are no files to be converted. Or File list (lst) is not found
8 - Indicates that not all files have been converted

Note that if the file paths to cons_rcp.exe, .cfg file, .act file, or files you would like to convert are very long, or contain blank spaces, you need to type them in double quotes, as shown in examples.

With further questions, please contact out technical support.
